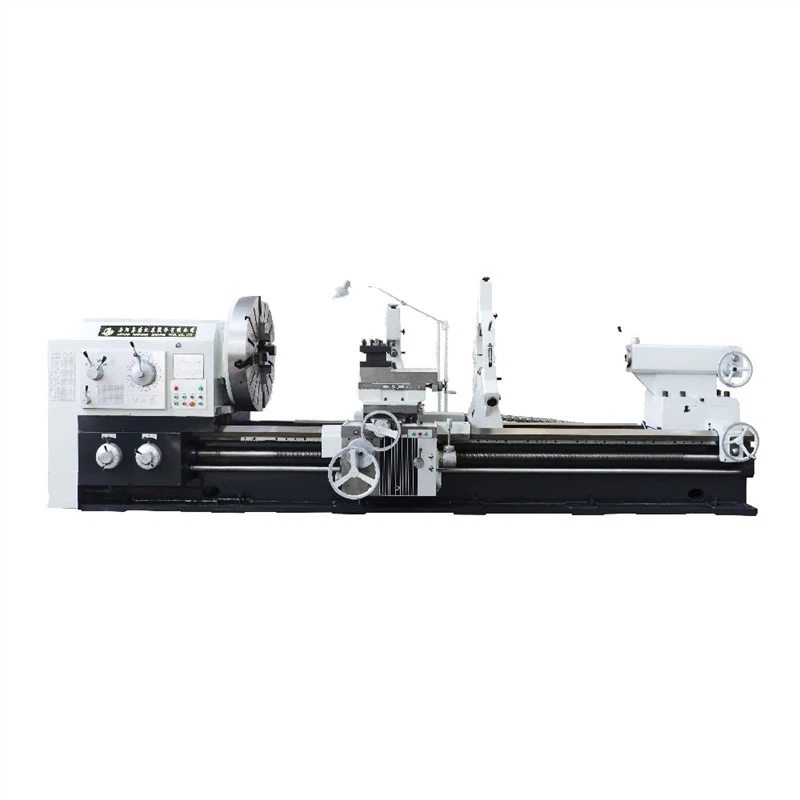

CW61100B CW61125B CW61160B kab rov tav tshuab dhos yog tsim rau kev ua cov loj thiab nruab nrab qhov chaw ntawm castings, steel qhov chaw thiab cov hlau uas tsis yog-ferrous. Nws tuaj yeem tig cov voj voog sab nrauv, sab hauv lub qhov, qhov kawg ntawm lub ntsej muag, grooving, drilling, tho txawv thiab zes, thiab tuaj yeem tig metric, nti, module thiab txoj kab uas hla thiab lwm cov xov sab hauv thiab sab nraud, cov cuab yeej sab saud tuaj yeem siv rau lub cev muaj zog-tig luv. conical nto ib leeg, thiab cov cuab yeej sab saud tuaj yeem siv ua ke nrog longitudinal pub kom tig ntev conical nto. Cov cuab yeej siv lub tshuab muaj lub zog siab, muaj zog rigidity, dav dav, thiab tuaj yeem ua haujlwm siab thiab muaj zog txiav. Khoom nta:
1. High rigidity integral txaj
Lub txaj tau txais ib qho tseem ceeb cast structural txaj, nrog tsim nyog sab hauv tav layout thiab siab rigidity. Cov kev taw qhia rails siv nruab nrab zaus quenching thiab sib tsoo tshuab. Kev ntsuas thev naus laus zis xws li kev tiv thaiv kev nkag mus rau cov ntawv qhia kev tsheb nqaj hlau tau txais los ntawm cov lus qhia zawv zawg. Dynamic yam ntxwv xws li kev sib txhuam thiab damping coefficients nyob rau hauv lub xeev zoo tshaj plaws, zam qhov tshwm sim ntawm qis-ceev nkag.
2. High rigidity thiab siab precision spindle
Lub tshuab cuab yeej spindle bearings raug xaiv los ntawm cov khoom lag luam ntawm cov tuam txhab nto moo hom. Lub thawv spindle txais yuav cov qauv symmetrical los xyuas kom meej cov thermal deformation thiab tsis txhob sib txawv ntawm qhov chaw spindle. Txhawm rau txo cov thermal deformation, lub headboard txais cov roj da dej ncig lubrication. Lub hauv ntej kawg ntawm lub spindle txais ib tug peb-txheej qauv ntawm ob-txoj kev angular contact pob bearings, uas txhim kho qhov tseeb thiab txhim khu kev rigidity. Cov iav hauv lub thawv spindle yog tag nrho cov quenched thiab hauv av kom ntseeg tau tias kev sib kis tau zoo thiab tsis muaj suab nrov. Ua tib zoo sib sau ua ke spindle muaj cov yam ntxwv ntawm qhov kub tsis tshua muaj siab, me me thermal deformation thiab siab precision, tso cai rau cov ntxaiv kom muaj kev ruaj ntseg nyob rau hauv ntau yam precisions thaum lub sijhawm ua haujlwm ntev.
|
Qhov project |
chav tsev |
CWJ 61100B |
CWJ 61125B |
CWJ 61140B |
CWJ 61160B |
|
|
Muaj peev xwm |
||||||
|
Qhov siab tshaj plaws kev sib hloov txoj kab uas hla ntawm lub txaj |
mm |
1000 |
1250 |
1400 |
1600 |
|
|
Qhov siab tshaj plaws txiav txoj kab uas hla |
mm |
615 |
865 |
1015 |
1250 |
|
|
Maximum workpiece ntev |
mm |
1500/2000/3000/4000/5000/6000/8000/10000/12000 |
||||
|
Qhov siab tshaj plaws txiav ntev |
mm |
1300/1800/2800/3800/4800/5800/7800/9800/11800 |
||||
|
Lub txaj rail dav |
mm |
755 |
||||
|
Spindle |
||||||
|
Spindle kawg code |
mm |
A2-15(8*M22) |
||||
|
Spindle los ntawm lub qhov taub |
mm |
130 |
||||
|
Spindle pem hauv ntej kawg tapered qhov |
1:20/140 |
|||||
|
Spindle ceev ntau yam |
r / min |
Forward:3.15-315 Rov qab:3.5-291 |
||||
|
Spindle ceev hom |
Forward: 21 thim rov qab: 12 |
|||||
|
Pub mov |
||||||
|
Tus naj npawb ntawm ntsug thiab kab rov tav pub amouns |
56/56 |
|||||
|
Pub ntau yam |
mm |
Portrait:{0}}1-12; Kab rov tav:0.05-6; Sab saum toj riam so:0.025-3 |
||||
|
Metric xov tooj ntau yam |
44;{1}} hli |
|||||
|
Inch xov tooj ntau yam |
31;28-1/4 |
|||||
|
Module xov tooj ntau yam |
45; 0 5-60 hli |
|||||
|
Txoj kab uas hla pitch xov tooj ntau |
38;1/2-56NP |
|||||
|
Tool ncej |
||||||
|
Vertical nrug ntawm spindle center mus rau lub hauv paus nto |
mm |
48 |
||||
|
Cov cuab yeej tuav tig lub kaum sab xis |
±90º |
|||||
|
Maximum mus txawv tebchaws ntawm cov cuab yeej qis dua |
mm |
520 |
580 |
580 |
630 |
|
|
Maximum stroke ntawm sab sauv cuab yeej so |
mm |
300 |
||||
|
Toolbar seem |
mm |
45 (Lub cuab yeej loj 260 * 260) |
||||
|
Tool tuav ceev traverse ceev |
mm / min |
Portrait: 3740; Kab rov tav: 1870; Me me riam tuav: 935 |
||||
|
Tailstock |
||||||
|
Tailstock sieve diam |
mm |
160(6") |
||||
|
Tailstock tes tsho mus ncig |
mm |
300(12") |
||||
|
Tailstock tes tsho tapered qhov |
Morse 6 |
|||||
|
Lwm tus |
||||||
|
Main lub cev muaj zog |
kws |
22 |
||||
|
Tshuab ntev |
mm |
4600/5100/6100/7100/8100/9100/11100/13100/15100 |
||||
|
Tshuab dav |
mm |
2150 |
||||
|
Tshuab qhov siab |
mm |
1700/1825/2150 |
||||
|
Qhov siab tshaj plaws ntawm workpiece |
kg |
6000 |
||||
